As an indispensable heavy machinery in the construction site, the
excavator's complex structure and diverse functions require the operator to have a clear understanding of the role and maintenance methods of each part. This article will provide a detailed explanation of the three main parts of the excavator - chassis, cab, and arm/boom - and their respective key components to help you better understand the operation and maintenance of this powerful machine.
The chassis of the
excavator is the core support system of the whole machine, which provides the stability, support and mobility of the machine. The chassis mainly consists of tracks and track racks, which together ensure the normal operation of the excavator on various terrains.
The track is composed of several connecting rods connected by pins and bushings, and is the main moving device of the track excavator. The track is designed to distribute the weight of the excavator over a larger contact area, thereby reducing ground pressure and reducing soil disturbance. This design is especially important on muddy or soft ground, as it enhances the traction and stability of the machine.
The track frame supports and accommodates the track, forming the basic structure of the entire chassis. Its role is to evenly distribute the weight of the excavator and improve the stability of the machine during the working process. These support structures are essential for maintaining the excavator's balance, especially on uneven ground.
Understanding the specific components of the crawler frame is crucial to mastering the performance of a crawler excavator. Track components include track pads, chains, track plates and bolts, each of which plays an important role in the excavator's movement and traction.
Track pads: These pads are in direct contact with the ground and their design directly affects the traction, stability and durability of the excavator. According to different operating environments, different configurations of track pads can be selected to meet various application requirements.
Chain and track plate: The chain connects the track plate and helps the excavator move smoothly. These components must be able to withstand tremendous pressure, so special attention needs to be paid to their durability and performance when they are manufactured.
Bolts: Bolts are used to hold the track components together to ensure the stability of the track assembly. Regularly checking and maintaining the torque of these bolts is key to preventing track problems and maintaining overall track integrity.
Among the other supporting parts of the chassis, rock guards, sprockets, rollers and idlers also play an important role.
Rock guards: These protect chassis components from rubble and other potentially dangerous objects. When excavators work in harsh environments, they minimize the risk of component damage.
Sprocket: Located at the rear of the chassis, the sprocket engages with the track link and is responsible for driving the excavator forward or backward. The normal operation of the sprocket is very important to accurately control the movement of the excavator.
Rollers and idler wheels: Rollers guide the track along the chassis, and idler wheels control the tension of the track. Together, these components ensure smooth movement of the track, reduce wear, and optimize the performance of the machine.
Cab: The control center of the excavator
The cab of the excavator is the core part of the operation and control of the machine, which not only provides the basic control required by the operator, but also contains a number of key safety features.
The operator seat is equipped with a variety of controls, including levers, joysticks, pedals and accelerators. These controls allow the operator to precisely control the various functions of the excavator, such as the boom, arm and bucket. The ergonomic design not only improves operator comfort, but also enhances efficiency and productivity for long periods of operation.
ROPS (Rollover Protection Structure) is an important safety feature to protect operators. It prevents the cab from collapsing in the event of a rollover, minimizing the risk of operator injury. ROPS must be designed to be robust to ensure effective protection against potential hazards.
Engine: The excavator's engine is its main power source, responsible for generating the power needed to drive the hydraulic system and other components. The engine is securely enclosed in the cockpit to reduce noise and increase operator comfort.
Hydraulic tank: The hydraulic tank is used to store the hydraulic oil that powers the boom, rod and bucket of the excavator. Regular inspection and maintenance of hydraulic oil levels is essential to maintaining the best performance of the excavator.
Fuel tank: The fuel tank stores the fuel needed to keep the engine running. The operator can monitor the fuel level in the cockpit to ensure timely refueling and avoid interruptions.
Main control valve: The main control valve is the core control device of the excavator hydraulic system, which is responsible for regulating the flow of hydraulic fluid to control the movement of various hydraulic cylinders. This system allows the various components of the excavator to operate in a coordinated manner.

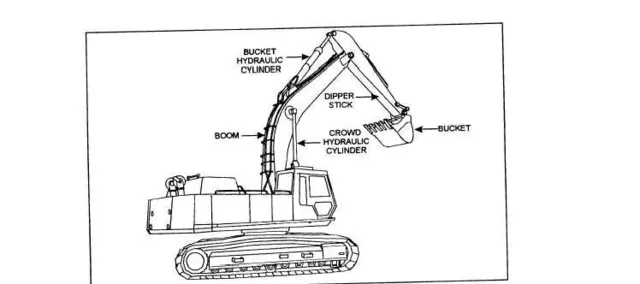

The arm of the excavator is the core of its work and is responsible for completing various excavation and lifting tasks.
Boom: The boom is the main component that extends from the chassis of the excavator and provides the height and extension capability to allow the operator to reach a distant work area. The boom is the basis of connecting the boom and the bucket, and its design directly affects the working range and function of the excavator.
Arm: The arm is connected to the boom, which further expands the working capability of the excavator. The function of the arm is to provide greater operating range and flexibility, allowing the excavator to carry out a variety of digging and handling tasks.
Bucket: The bucket is the ultimate execution tool of the excavator, which is responsible for the actual digging, loading and handling tasks. The design and configuration of the bucket will affect its performance in different soils and materials.
With detailed knowledge of all parts of the excavator chassis, cab and arm/boom, the operator can effectively understand the function and performance of the equipment, ensuring safety and efficiency in all operating conditions. The design and operation of each component has its own unique role, and correct operation and maintenance can not only extend the service life of the excavator, but also significantly improve the construction efficiency. Mastering these basics will provide operators with greater confidence and security in their work, ensuring that every operation is performed to the best possible effect.
