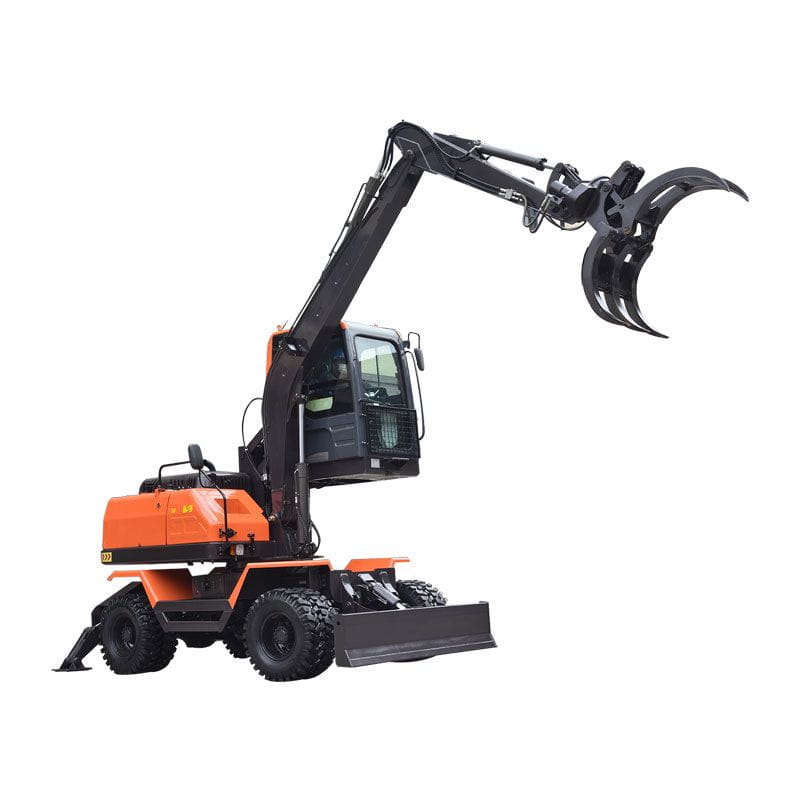

Wheeled Grab Excavators for Timber Wood Handling Machines
Key Specifications / Features
Introducing our advanced Wheeled Grab Excavators, designed specifically for efficient Timber Wood Handling. With a robust build weighing 8.6 tons and an engine power of 65 kW, these excavators deliver exceptional performance. Equipped with versatile capabilities, they offer a Grab Max Capacities range of 500 to 800 kg, ensuring optimal material handling. The Grab Max Open of 1250 mm allows for smooth and effective loading and unloading operations, making these excavators an ideal choice for timber and wood handling tasks.
- Model No.: WE-230817-GE-02
- Hits: 22
- Categories: Grab Excavators
- Tags: Wheeled Digging Machine , Fully Hydaulic Excavators , Grabbing Excavator
Detail Information
Operating Weight: 8600 kg, 8.6 Tons
Engine Power: 65 kw
Tail Swing Radius: 198 mm
Bucket Capacity: 0.35 m³
Walking Speed: 25 km/h
Max radius of capture: 6000-7000 mm
Grab theMax Opening Width: 1250 mm
Grab the Min opening width: 80 mm
Max Grabing Capacity: 500 - 800 kg
Max Lifting Height of Cab: 800 mm
Max Extended Distance of Arm: 800 mm
Max Traction force: 58.5 KN
Grade Climbing ability: 30 °/58%
| SPECIFICATION | |
| Range of Operation | |
| Boom Length | 3670mm |
| Arm Length | 1860mm-2650mm |
| Max Radius of Capture | 6000-7000mm |
| Grab The Biggest Opening Width | 1250mm |
| Grab The Minimum Opening Width | 80mm |
| Maximum Grabbing Capacity | 500-800kg |
| Grapple Rotation Angel | 360° |
| Maximum Dumping Height | 4650-5100mm |
| Back-End Radius of Gyration | 198mm |
| Max Lifting Height of Cab | 800mm |
| Max Extended Distance of Arm | 800mm |
| Dimension | |
| (Length*Width*Height) Travel Position | 6450*2230*3050mm |
| Wheel Base | 2430mm |
| Track(Front/Rear) | 1850mm/1750mm |
| Ground Clearance of Counterweight | 1060mm |
| Min Ground Clearance | 200mm |
| Technical Parameters | |
| Angle of Rotation | 360° |
| Machine Weight | 8600kg |
| Engine Model | YN38GBZ/4102(Turbocharged) |
| Rated Power | 65KW |
| Rated Speed | 2400r/min |
| Hydraulic System Working Pressure | 21Mpa |
| Hydraulic System Flow | 150L/min |
| Variable Piston Pump | 71ml/r |
| Max Hauling Force | 58.5KN |
| Walking Speed | 25km/h |
| Grade Climbing Ability | 58%/30° |
| Tyre Model | 825.16 |
| Volume of Bucket | 0.35m3 |
| Revolution Overdrive Pressure | 20Mpa |
| Full Circle Swinging Time | 5.5s |
| Fqt Fuel Quantity | ≥4L/h |
| Hydraulic Tank Capacity | 110L |
| Capacity of The Fuel Tank | 110L |
