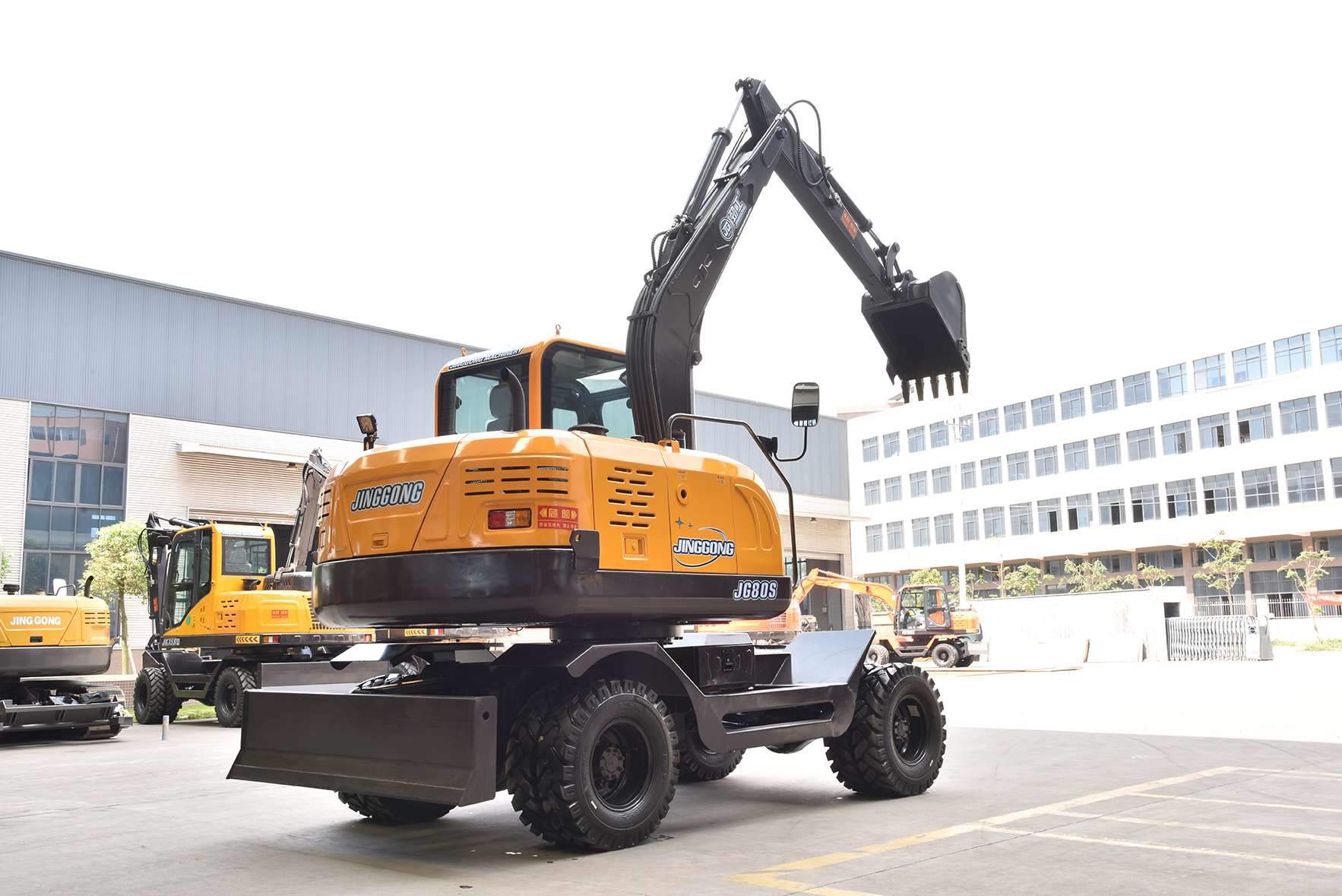

Wheeled Type Excavator with Automatic Transmission
Key Specifications / Features
Explore our wheeled type excavator, proudly sourced from China. This machine, with a weight of 7 tons, features an automatic transmission for ease of operation. It comes equipped with a 3300 mm boom length and can achieve a maximum digging depth of 3250 mm, making it a versatile choice for various excavation needs.
- Model No.: WE-231009-WE-04
- Hits: 10
- Categories: Wheeled Excavators
- Tags: 7 Ton Excavators , Wheeled Digging Machine , Fully Hydaulic Excavators
Detail Information
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3300mm | ||||||||
| Arm length | 1850mm | |||||||||
| Maximum Digging Reach | 6120mm | |||||||||
| Maximum Digging Depth | 3250mm | |||||||||
| Maximum Digging Force | 45KN | |||||||||
| Maximum Digging Height | 6800mm | |||||||||
| Maximum Dumping Height | 4750mm | |||||||||
| Back-end radius of gyration | 1800mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 5700*2100*2970mm | ||||||||
| Axle base | 2600mm | |||||||||
| Wheel base(Front/rear) | 1660mm/1580mm | |||||||||
| Ground clearance of counterweight | 1120mm | |||||||||
| Min ground clearance | 285mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 7000kg | |||||||||
| Engine model | YUNNEI 4102 | |||||||||
| Rated Power | 58.8KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 21Mpa | |||||||||
| Hydraulic system flow | 150L/min | |||||||||
| Variable piston pump | 72ml/r | |||||||||
| Max traction force | 60KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 825.16 | |||||||||
| Volume Of Bucket | 0.25m3 | |||||||||
| Swing overload pressure | 20Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
