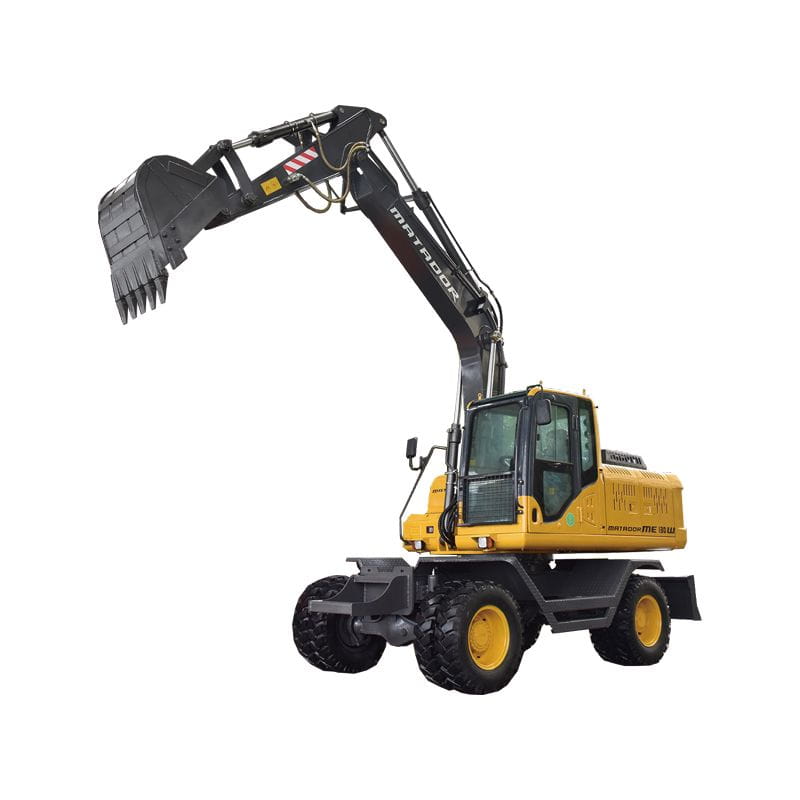

13.5 Ton Wheeled Medium Excavators, Bucket Range 0.4-0.5 m³
Key Specifications / Features
Discover our range of Wheeled Medium Excavators. With an operating weight of 13.5 tons and an engine power of 93 kW, these excavators promise impressive performance. Featuring a max reach of 7900 mm and a tail swing radius of 2250 mm, they excel in maneuverability. Equipped with bucket capacities ranging from 0.4 to 0.5 m³, these excavators are your solution for versatile tasks.
- Model No.: WE-230816-WE-02
- Hits: 10
- Categories: Wheeled Excavators
- Tags: 13 Ton Excavator , Wheeled Digging Machine , Fully Hydaulic Excavators
Detail Information
Operating Weight: 13500 kg, 13.5 Tons
Engine Power: 93 kw
Tail Swing Radius: 2250 mm
Bucket Capacity: 0.4-0.5 m³
Walking Speed: 28 km/h
Max Digging Reach: 7900 mm
Max Digging Depth: 4600 mm
Max Traction Force: 76.5 KN
Gradeability: 30 °/58%
| SPECIFICATIONS | |
| Range of Operation | |
| Boom Length | 4500mm |
| Arm Length | 2200mm |
| Max. Digging Reach | 7900mm |
| Max. Digging Depth | 4600mm |
| Max. Digging Force | 90KN |
| Max. Dumping Height | 6450mm |
| Back-End Radius of Gyration | 2250mm |
| Dimensions | |
| Length*Width*Height) Transport Dimensions | 7500*2500*3000mm |
| Axle Base | 2750mm |
| Ground Clearance of Counterweight | 1260mm |
| Min. Ground Clearance | 310mm |
| Tech Performance And Specification | |
| Angle of Rotation | 360° |
| Machine Weight | 13500kg |
| Engine Model | CUMMINS（Euro III) |
| Rated Power | 93KW |
| Rated Speed | 2200r/min |
| Hydraulic System Working Pressure | 32Mpa |
| Hydraulic System Flow | 270L/min |
| Metering Gear Pump | 2*63ml/r |
| Max. Traction Force | 76.5KN |
| Walking Speed | 28km/h |
| Grade Climbing Ability | 58%/30° |
| Tyre Model | 9.00-20 |
| Volume Of Bucket | 0.4-0.5m³ |
| Fuel Quantity | ≥6L/h |
| Fuel Tank Capacity | 200L |
| Hydraulic Oil Tank Capacity | 200L |
