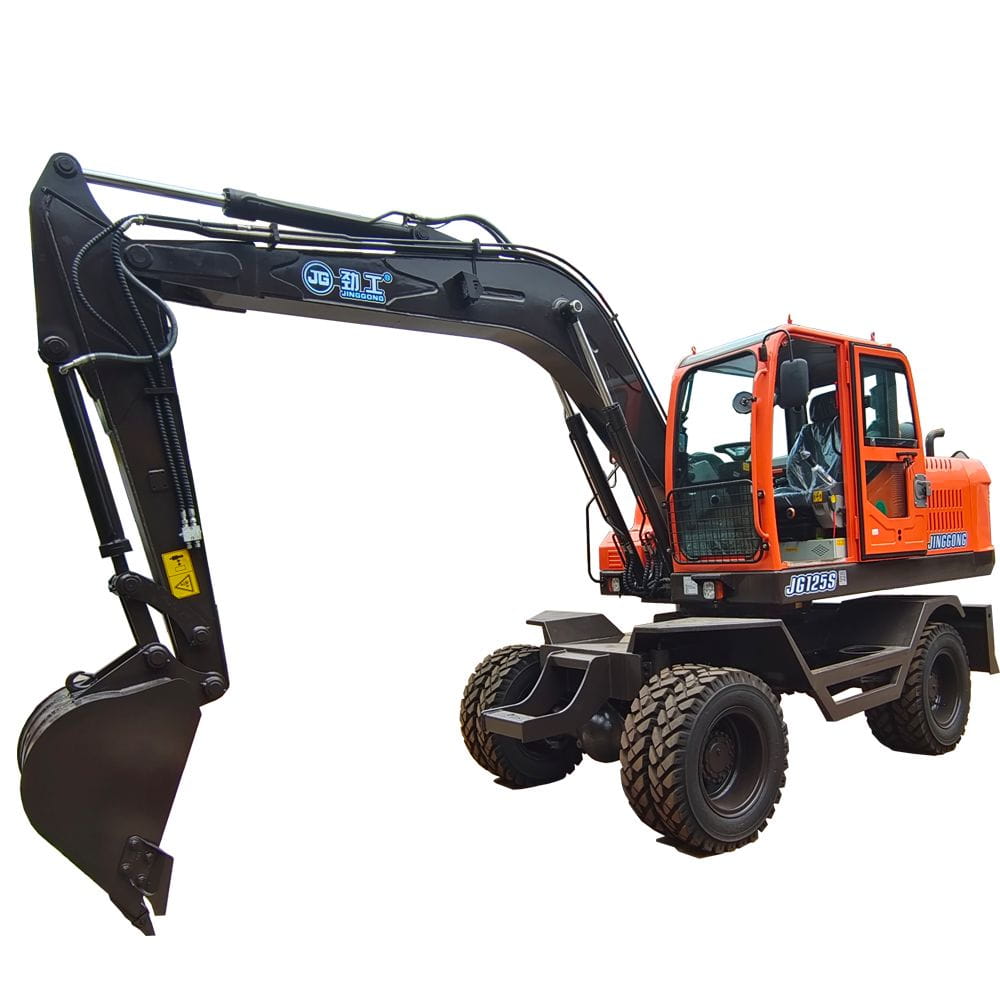

Automatic Full Hydraulic Transmission Drive Wheeled Excavator
Key Specifications / Features
Uncover the range of our Wheeled Excavators, showcasing Automatic Full Hydraulic Transmission. These 10-ton units wield substantial force, driven by a 73.5 kW engine that delivers exceptional potency. Boasting a maximum reach of 7350 mm and a tail swing radius of 2100 mm, their agility sets them apart. Featuring a 0.4 m³ bucket, these excavators emerge as your adaptable answer for an array of tasks.
- Model No.: WE-230816-WE-03
- Hits: 14
- Categories: Wheeled Excavators
- Tags: Fully Hydaulic Excavators , Wheeled Digging Machine , 10 Ton Excavator
Detail Information
Operating Weight: 10000 kg, 10 Tons
Engine Power: 73.5 kw
Tail Swing Radius: 2100 mm
Bucket Capacity: 0.4 m³
Walking Speed: 30 km/h
Max Digging Reach: 7350 mm
Max Digging Depth: 4300 mm
Max Traction Force: 60 KN
Gradeability: 30 °/58%
| SPECIFICATIONS | |
| Range of Operation | |
| Boom Length | 4000mm |
| Arm Length | 2000mm |
| Max. Digging Reach | 7350mm |
| Max. Digging Depth | 4300mm |
| Max. Digging Force | 60KN |
| Max. Digging Height | 6945mm |
| Max. Dumping Height | 5330mm |
| Back-End Radius of Gyration | 2100mm |
| Dimensions | |
| (Length*Width*Height) Transport Dimensions | 7050*2330*2980mm |
| Axle Base | 2600mm |
| Wheel Base (Front/Rear) | 1770mm |
| Reinforced Drive Axle | Wheel side reducer |
| Ground Clearance of Counterweight | 1210mm |
| Min. Ground Clearance | 440mm |
| Tech Performance And Specification | |
| Angle of Rotation | 360° |
| Machine Weight | 10000kg |
| Engine Model | YUCHAI（National StageIII) |
| Rated Power | 73.5KW |
| Rated Speed | 2200r/min |
| Hydraulic System Working Pressure | 28Mpa |
| Hydraulic System Flow | 230L/min |
| Max. Traction Force | 60KN |
| Walking Speed | 30km/h |
| Grade Climbing Ability | 58%/30° |
| Tyre Model | 8.25-20 |
| Full Circle Swinging Time | 6s |
| Volume of Bucket | 0.4m³ |
