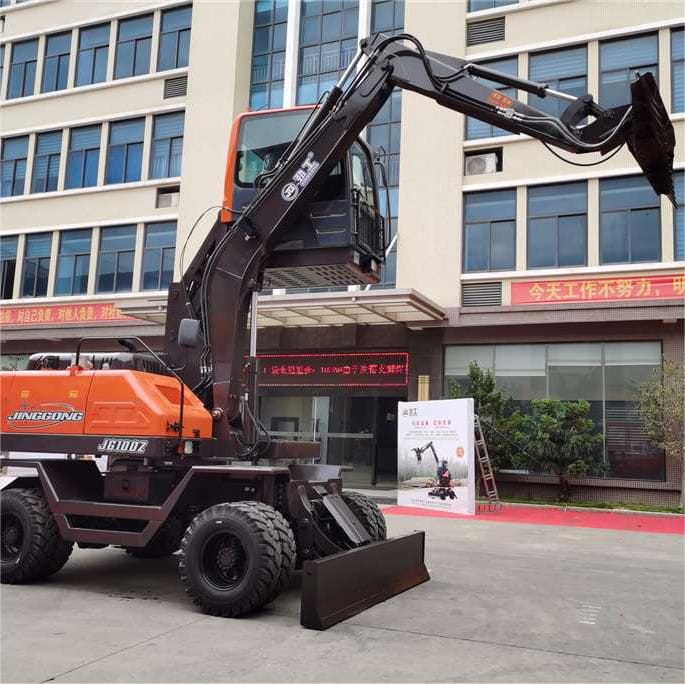

Wheeled Excavator with Material Leveler and Coal Sweeper
Key Specifications / Features
Introducing our Wheeled Excavators equipped with a Material Leveler and Coal Sweeper. Weighing 8.5 tons and powered by a 62.5 kW engine, these machines offer optimal performance. With a leveler width of 2500 mm and a tail swing radius of 1800 mm, they ensure efficiency. Sporting a 0.25 m³ bucket, these excavators stand prepared to handle an array of tasks with remarkable versatility.
- Model No.: WE-230816-WE-04
- Hits: 15
- Categories: Wheeled Excavators
- Tags: Wheeled Digging Machine , 8 Ton Excavator , Fully Hydaulic Excavators
Detail Information
Operating Weight: 8500 kg, 8.5 Tons
Engine Power: 62.5 kw
Tail Swing Radius: 1800 mm
Bucket Capacity: 0.25 m³
Walking Speed: 25 km/h
Max Lifting Height of Cab: 1800 mm
Max Extended Distance of Arm: 800 mm
Max Leveling Height: 3800 mm
Width of Leveler: 2500 mm
Max Traction Force: 60 KN
Gradeability: 30 °/58%
| SPECIFICATIONS | |
| Range of Operation | |
| Boom Length | 3680mm |
| Arm Length | 1850mm |
| Max Extended Distance of Arm | 800mm |
| Max Lifting Height of Cab | 1800mm |
| Width of Leveler | 2500mm |
| Maximum Leveling Height | 3800mm |
| Back-End Radius of Gyration | 1800mm |
| Dimensions | |
| (Length*Width*Height) Travel Position | 5400*2500*3200mm |
| Wheel Base | 2590mm |
| Track(Front/Rear) | 1850mm/1750mm |
| Ground Clearance of Counterweight | 1060mm |
| Min Ground Clearance | 200mm |
| Tech Performance And Specification | |
| Angle of Rotation | 360° |
| Machine Weight | 8500kg |
| Engine Model | YUCHAI |
| Rated Power | 62.5KW |
| Rated Speed | 2200r/min |
| Hydraulic System Working Pressure | 21Mpa |
| Hydraulic System Flow | 130L/min |
| Variable Piston Pump | 65ml/r |
| Max Traction Force | 60KN |
| Walking Speed | 25km/h |
| Grade Climbing Ability | 58%/30° |
| Tyre Model | 825.16 |
| Volume of Bucket | 0.25m³ |
