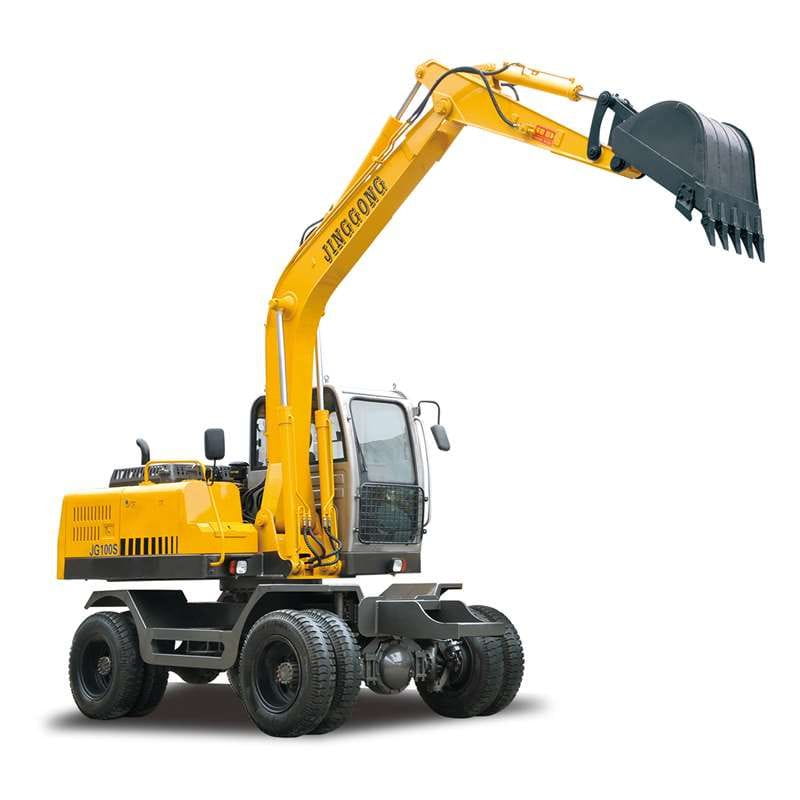

8 Ton Wheeled Excavator, Bucket 0.35 m³, Max Reach 6780 mm
Key Specifications / Features
Explore the capabilities of our Wheeled Excavators. With a weight of 8 tons and driven by a 60 kW engine, these machines deliver outstanding efficiency. Boasting a maximum reach of 6780 mm and a tail swing radius of 2000 mm, they showcase superior maneuvering. Featuring a 0.35 m³ bucket, these excavators present themselves as your answer for a multitude of tasks.
- Model No.: WE-230816-WE-05
- Hits: 18
- Categories: Wheeled Excavators
- Tags: Wheeled Digging Machine , 8 Ton Excavator , Fully Hydaulic Excavators
Detail Information
Operating Weight: 8000 kg, 8 Tons
Engine Power: 60 kw
Tail Swing Radius: 2000 mm
Bucket Capacity: 0.35 m³
Walking Speed: 28 km/h
Max Digging Reach: 6780 mm
Max Digging Depth: 4220 mm
Max Traction Force: 50 KN
Gradeability: 30 °/58%
| SPECIFICATIONS | |
| Range Of Operation | |
| Boom Length | 3820mm |
| Arm Length | 1710mm |
| Maximum Digging Reach | 6780mm |
| Maximum Digging Depth | 4220mm |
| Maximum Digging Force | 50KN |
| Maximum Digging Height | 6630mm |
| Maximum Dumping Height | 4440~4710mm |
| Back-End Radius of Gyration | 2000mm |
| Dimensions | |
| (Length*Width*Height) Travel Position | 6720*2380*2950mm |
| Wheel Base | 2620mm |
| Track(Front/Rear) | 1930mm |
| Ground Clearance of Counterweight | 1250mm |
| Min Ground Clearance | 250mm |
| Tech Performance And Specification | |
| Angle of Rotation | 360° |
| Machine Weight | 8000kg |
| Engine Model | YC4D85Z-T20 |
| Rated Power | 60KW |
| Rated Speed | 2200r/min |
| Hydraulic System Working Pressure | 23.5Mpa |
| Hydraulic System Flow | 198L/min |
| Variable Piston Pump | 2*45ml/r |
| Max Traction Force | 50KN |
| Walking Speed | 28km/h |
| Grade Climbing Ability | 58%/30° |
| Tyre Model | 825.2 |
| Volume of Bucket | 0.35m³ |
