Key Specifications / Features

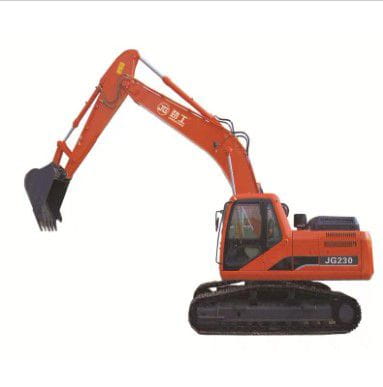

Introducing our premium selection of Crawler Excavators. With a robust 22.3-ton weight and powered by a formidable 128.5 kW engine, these machines are synonymous with top-quality performance. Featuring a max digging depth of 6592 mm and a tail swing radius of 2794 mm, these excavators exemplify precision. Equipped with generous 1.2 m³ bucket capacities, they stand ready to tackle a diverse range of tasks.
- Model no.: WE-230816-CE-02
- Hits: 5
- Categories: Crawler Excavators
- Tags: 22 Ton Excavator , Crawler Digger , Fully Hydaulic Excavators
Detail Information
Operating Weight: 22300 kg, 22.3 Tons
Engine Power: 128.5 kw
Tail Swing Radius: 2794 mm
Bucket Capacity: 1.2 m³
High Speed / Low Speed: 5.9 / 3.2 km/h
Max Digging Depth: 6592 mm
Max Vertical Mining depth: 3929 mm
Max Digging Height: 9616 mm
Max Unloding Height: 6830 mm
| SPECIFICATION | |
| Performance Parameter | |
| Weight | 22.3t |
| Bucket Capacity | 1.2m³ |
| Engine Rated Power | 128.5kw |
| Rotary Speed | 10.7min |
| Walking Speed(High/Low) | 5.9-3.2km/h |
| Ground Specific Pressure | 43.5kpa |
| Climbing Ability(%) | 70% |
| Digging Force | 77.4KN/Turbo charge 81.3kn |
| Boundary Dimension | |
| The Total Width of Belt Off | 2990mm |
| Transport Length | 9600mm |
| Transport Arm Height | 3005mm |
| Cab Height | 3000mm |
| The Radius of The End of Gyration Platform | 2794mm |
| Counter Weight Ground Clearance | 475mm |
| Counter Weight Ground Clearance | 1096mm |
| Cauge | 2400mm |
| Total Width of The Car | 2990mm |
| Total Length of Walking Mechanism | 4440mm |
| The Total Width of Belt Off | 2980mm |
| Wheelbase | 3635mm |
| Belt Width | 600mm |
| Working Range | |
| Max Digging Depth | 6592mm |
| Max Vertical Mining Depth | 3929mm |
| Max Digging Height | 9616mm |
| Max Unloding Height | 6830mm |
| Max Digging Radius | 9873mm |
| Minimum Turning Radius | 3560mm |
| Engine Rated Power | Isuzu |
| Main Pump | Kawasaki(Japan) |
| Control Valve | Parker |
| Travel Motor And Swing Motor | Doosan(Korea) |
