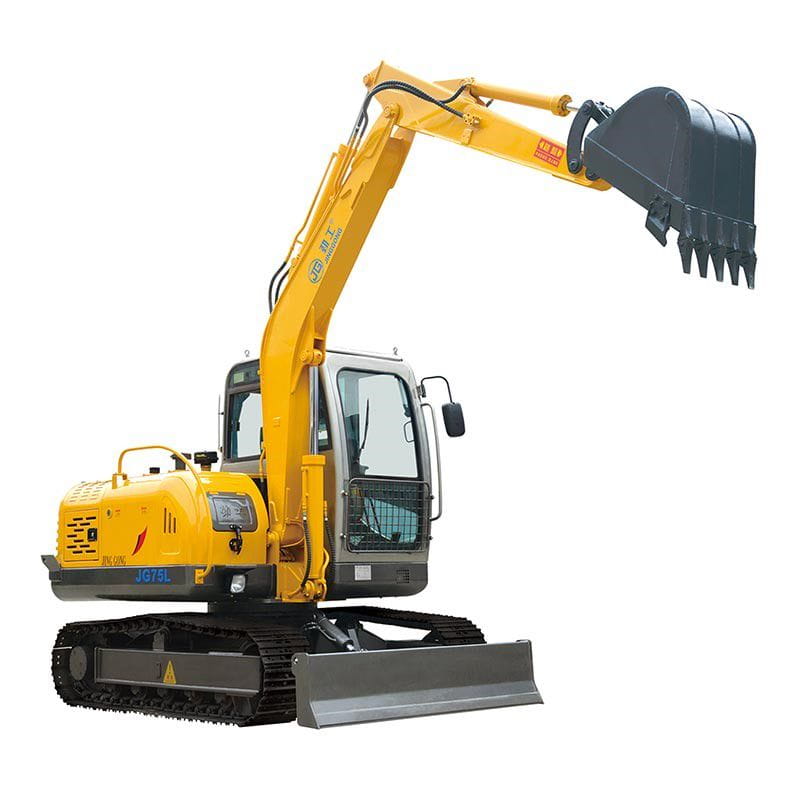

6 Ton Crawler Digging Machine for Sale, Bucket 0.2-0.3 m³

Key Specifications / Features

Model No.: WE-230817-CW-01 Hits: 10

Explore our top-tier 6-ton Crawler Digging Machines, boasting a formidable engine power of 58.8 kW. With an impressive maximum reach of 6000 mm and a tail swing radius of 1700 mm, this machine offers exceptional agility. Equipped with bucket capacities ranging from 0.2 to 0.3 m³, it ensures efficient and versatile operations for your digging needs.
Request a quote

Detail Information

Operating Weight: 6000 kg, 6 Tons
Engine Power: 58.8 kw
Tail Swing Radius: 1700 mm
Bucket Capacity: 0.2-0.3 m³
High Speed / Low Speed: 4.5 / 2.5 km/h
Max Digging Reach: 6000 mm
Max Digging Depth: 3580 mm
Max Digging Height: 5400 mm
Max Dumping Height: 4000 mm
Gradeability: 35 °/70%

Range of Operation
Boom Length 3030mm
Arm Length 1860mm
Maximum Digging Reach 6000mm
Maximum Digging Depth 3580mm
Maximum Digging Force 45KN
Maximum Digging Height 5400mm
Maximum Dumping Height 4000mm
Back-End Radius of Gyration 1700mm
(Length*Width*Height) Travel Position 5200*2100*2650mm
Distance From The Arm To Rotate Machine 3600mm
Machine Height  2550mm
Wheel Base 2060mm
Track Gauge 1570mm
Width of Crawler 400mm
Width of Platform  2000mm
Ground Clearance of Counterweight 730mm
Min Ground Clearance 360mm
Technical Parameters
Angle of Rotation 360°
Machine Weight 6000kg
Engine Model YN36GB2/4100
Rated Power 58.8KW
Rated Speed 2200r/min
Hydraulic System Working Pressure 21Mpa
Hydraulic System Flow 120L/min
Metering Gear Pump 2*28ml/r
Max Traction Force 45KN
(High Speed/Low Speed) 4.5/2.5km/h
Grade Climbing Ability 70%/35°
Volume of Bucket 0.2-0.3m3
Revolution Overdrive Pressure 16Mpa
Full Circle Swinging Time 5.5s
Fqt Fuel Quantity  ≥4L/h
Capacity of The Fuel Tank 130L
Hydraulic Tank Capacity  110L

6 Ton Crawler Excavator

6 Ton Crawler Excavator
