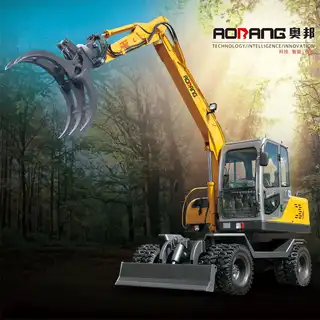

7.8 Tons Wheeled Excavator, with 65 KW Turbocharged Engine
Key Specifications / Features
7.8 Tons Wheeled Excavator Maker from China: providing 7.8 tons wheeled excavators featuring a 65 KW turbocharged engine for power, a top walking speed of 25 km/h for efficiency, and a luxurious lift cab equipped with air conditioning and a comfortable seat for your convenience.
- Model No.: WE-231009-WE-09
- Hits: 27
- Categories: Wheeled Excavators
- Tags: 7 Ton Excavators , Wheeled Digging Machine , Fully Hydaulic Excavators
Detail Information
Discover the advantages of our excavators:
- Utilize high-quality cylinders for improved performance.
- Feature a new integrated console, enhancing operator comfort during operation.
- Incorporate a patented grapple with flexible rotation, boosting work efficiency.
- Offer a luxurious cab with air conditioning, a multi-functional charging interface, and a comfortable shock-resistant seat. The lift cab provides a spacious, well-lit interior with excellent visibility, reduced noise levels, and decreased driver fatigue, ultimately enhancing work efficiency.
- Employ a full hydraulic pilot operation system that is advanced and user-friendly, ensuring a lightweight and flexible experience.
- Constructed using high-quality steel, our machines are robust, reliable, and exceptionally durable.
- Boast a strong drive system with high carrying capacity and impressive tractive force to withstand impacts.
- Equipped with a multi-way valve, hydraulic system, and walking motor sourced from South Korea, ensuring advanced and dependable performance.
- Feature a new condition engine with turbocharging, utilizing a renowned domestic engine brand. This ensures low fuel consumption, robust power, and exceptional reliability.
- Utilize steel-braided tubes for both inlet and outlet oil lines, providing oil-resistant and high-pressure tubing for safe and dependable operation.
- Come equipped with engineering cross-country tires designed for excellent anti-friction performance.
| RANGE OF OPERATION | Boom Length | 3680mm | ||||||||
| Arm Length | 2000mm | |||||||||
| Max Digging Radius | 6900mm | |||||||||
| Grab The Biggest Opening Width | 1250mm | |||||||||
| Grab The Minimum Opening Width | 80mm | |||||||||
| Maximum Radius Weight Capacity | 800kg | |||||||||
| Grapple Rotation Angle | 360° | |||||||||
| Max Dumping Height | 5550mm | |||||||||
| Back-End Radius Of Gyration | 1980mm | |||||||||
| Volume Of Bucket | 0.3m3 | |||||||||
| DIMENSION | (Length*width*height) travel position | 6500*2250*2900mm | ||||||||
| Wheel base | 2400mm | |||||||||
| Track(Front/rear) | 1660mm/1580mm | |||||||||
| Ground clearance of counterweight | 1060mm | |||||||||
| Min ground clearance | 265mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 7800kg | |||||||||
| Engine model | YN 38GBZ1 engine | |||||||||
| Rated Power | 65KW | |||||||||
| Rated Speed | 2400r/min | |||||||||
| Hydraulic system working pressure | 20Mpa | |||||||||
| Hydraulic system flow | 150L/min | |||||||||
| Variable piston pump | 71ml/r | |||||||||
| Grapple Swing Speed | 12r/min | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 825-16 | |||||||||
| Revolution Overdrive Pressure | 16Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
