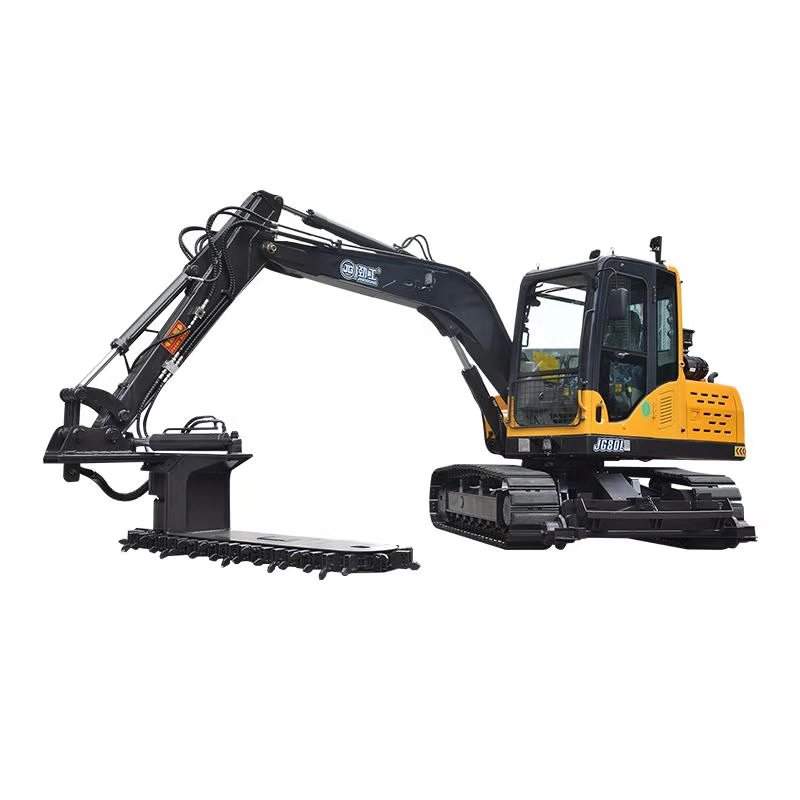

Crawler Ballast Maintenance Machine with Undercutter
Key Specifications / Features
Our crawler-type ballast maintenance machine features an undercutter with full 360° continuous rotation, allowing it to achieve cutting rates ranging from 20 to 50 meters per hour. This equipment is engineered for efficient railway ballast maintenance.
- Model No.: WE-231007-HE-14
- Hits: 34
- Categories: Hi-Rail Excavators
- Tags: Hi-Rail Equipment , Fully Hydaulic Excavators , Crawler Digger
Detail Information
Our Ballast Blaster Undercutters are meticulously tailored to complement your specific machine, ensuring peak performance levels. These undercutters typically achieve impressive cutting rates, ranging from 20 to 50 meters per hour (or 65 to 165 feet per hour), contingent upon the model and prevailing track conditions.
Our Ballast Tool Equipment features the coveted full 360° continuous rotation capability. This enhanced flexibility empowers operators to efficiently work from either side of the tracks, further streamlining their tasks. Additionally, it substantially enhances spoil pile management, affording operators greater flexibility and enabling them to achieve optimal cutting speed and performance.
| Ballast undercutter parameter | |
| Rotation angle of ballast Undercutter | ≥270° |
| Ballast chain line speed | ≥3.0m/s |
| Effective working radiu | ≥1500mm（Two-way access) |
| Rotation speed (sprocket rotation) | 150r/min |
| Completed ballast replacement distance per hour | ≥20m/h |
| Dimensions of Ballast Undercutter | 2500*900*900mm |
| Ballast Undercutter Total Weight | 600Kg |
| Dimensions | |
| (Length*width*height)Transport dimensions | 6100*2200*2650mm |
| Axle base | 2600mm |
| Track gauge | 1570mm |
| Width of crawler | 400mm |
| Min. ground clearance | 280mm |
| Tech performance and specification | |
| Machine weight | 8500kg |
| Engine model | YUCHAI |
| Rated power | 55KW |
| Rated speed | 2200r/min |
