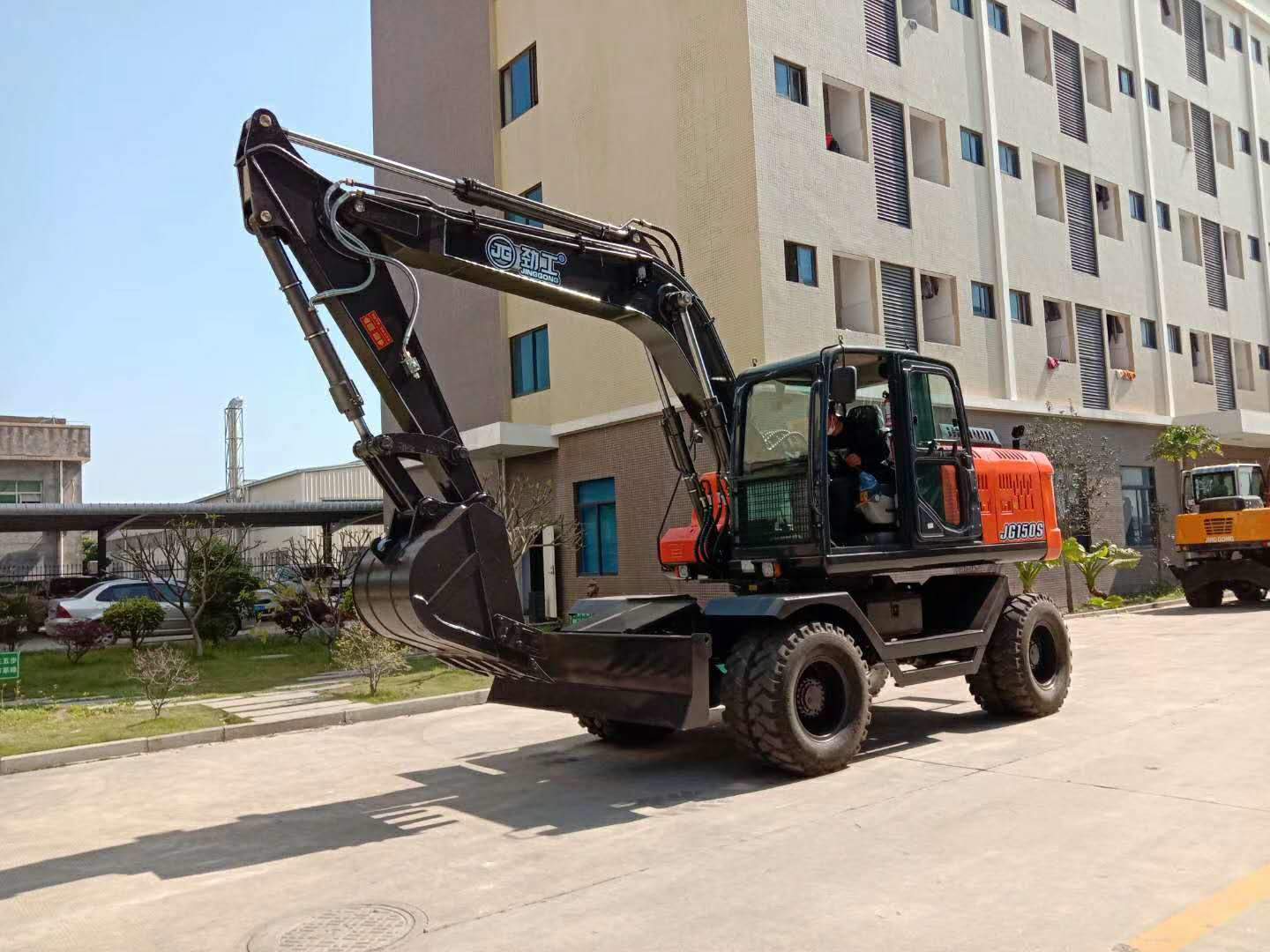

12 Tons Hydraulic Wheeled Excavators, Bucket 0.4 - 0.5 m³
Key Specifications / Features
Our hydraulic wheeled excavators, with a machine weight of 12 tons and a rated power of 85 kW, offer impressive capabilities. With a max digging reach of 7200 mm, a max digging depth of 4100 mm, and a bucket range of 0.4-0.5 m³, they are versatile and efficient machines for various applications.
- Model No.: WE-231008-HE-02
- Hits: 18
- Categories: Hi-Rail Excavators
- Tags: 12 Ton Excavators , Hi-Rail Equipment , Fully Hydaulic Excavators
Detail Information
| RANGE OF OPERATION | Boom length | 4200mm | ||||||||
| Arm length | 2000mm | |||||||||
| Maximum Digging Reach | 7200mm | |||||||||
| Maximum Digging Depth | 4100mm | |||||||||
| Maximum Digging Force | 90KN | |||||||||
| Maximum Digging Height | 8000mm | |||||||||
| Maximum Dumping Height | 6000mm | |||||||||
| Back-end radius of gyration | 2250mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 7200*2500*3000mm | ||||||||
| Wheel base | 2750mm | |||||||||
| Track(Front/rear) | 1900mm | |||||||||
| Ground clearance of counterweight | 1260mm | |||||||||
| Min ground clearance | 310mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 12000kg | |||||||||
| Engine model | Cummings 4BTAA3.9 | |||||||||
| Rated Power | 85KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 28Mpa | |||||||||
| Hydraulic system flow | 270L/min | |||||||||
| Metering gear pump | 2*63ml/r | |||||||||
| Max traction force | 76.5KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 900.20 | |||||||||
| Volume Of Bucket | 0.4-0.5m3 | |||||||||
| Fqt Fuel Quantity | ≥8L/h | |||||||||
| Capacity Of The Fuel Tank | 200L | |||||||||
| Hydraulic Tank Capacity | 200L | |||||||||
