Key Specifications / Features

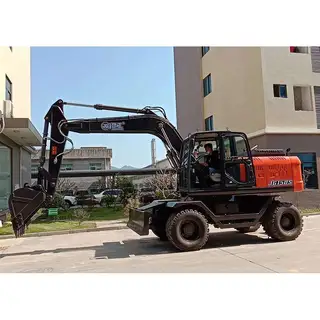

Explore our Wheeled Hi-Rail Excavator Machine, a powerful solution equipped with a Railroad Sleeper Changer. With a robust weight of 12.5 tons and an engine power of 55 kW, this machine stands ready for a multitude of tasks. Its impressive max reach of 7200 mm and tail swing radius of 2250 mm make it exceptionally adaptable. Boasting a maximum digging reach of 7200 mm and a depth of 4100 mm, this excavator is designed to excel in a wide range of operations.
- Model no.: WE-230818-HE-04
- Hits: 0
- Categories: Hi-Rail Excavators
- Tags: 12 Ton Excavators , Wheeled Digging Machine , Hi-Rail Equipment
Detail Information
Operating Weight: 12500kg, 12.5 Tons
Engine Power: 93 kw
Tail Swing Radius: 2250 mm
Bucket Capacity: 0.4 - 0.5 m³
Walking Speed: 25 km/h
Max Traction force: 76.5 KN
Max Digging Reach: 7200 mm
Max Digging Depth: 4100 mm
Max Digging Force: 90 KN
Max Digging Height: 8000 mm
Max Dumping Height: 6000 mm
Grade Climbing ability: 30 °/58%
| SPECIFICATIONS | |
| Range of Operation | |
| Boom Length | 4200mm |
| Arm Length | 2000mm |
| Maximum Digging Reach | 7200mm |
| Maximum Digging Depth | 4100mm |
| Maximum Digging Force | 90KN |
| Maximum Digging Height | 8000mm |
| Maximum Dumping Height | 6000mm |
| Back-End Radius of Gyration | 2250mm |
| Dimension | |
| (Length*Width*Height) Travel Position | 7200*2500*3000mm |
| Wheel Base | 2750mm |
| Track(Front/Rear) | 1900mm |
| Ground Clearance of Counterweight | 1260mm |
| Min Ground Clearance | 310mm |
| Technical Parameters | Angle of rotation |
| Angle of Rotation | 360° |
| Machine Weight | 12500kg |
| Engine Model | Cummins 4BTAA3.9 |
| Rated Power | 93KW |
| Rated Speed | 2200r/min |
| Hydraulic System Working Pressure | 28Mpa |
| Hydraulic System Flow | 270L/min |
| Metering Gear Pump | 2*63ml/r |
| Max Hauling Force | 76.5KN |
| Walking Speed | 25km/h |
| Grade Climbing Ability | 58%/30° |
| Tyre Model | 900.2 |
| Volume of Bucket | 0.4-0.5m3 |
| Fqt Fuel Quantity | ≥6L/h |
| Capacity of The Fuel Tank | 200L |
| Hydraulic Tank Capacity | 200L |
