Key Specifications / Features

Model No.: WE-231008-SCM-04 Hits: 2

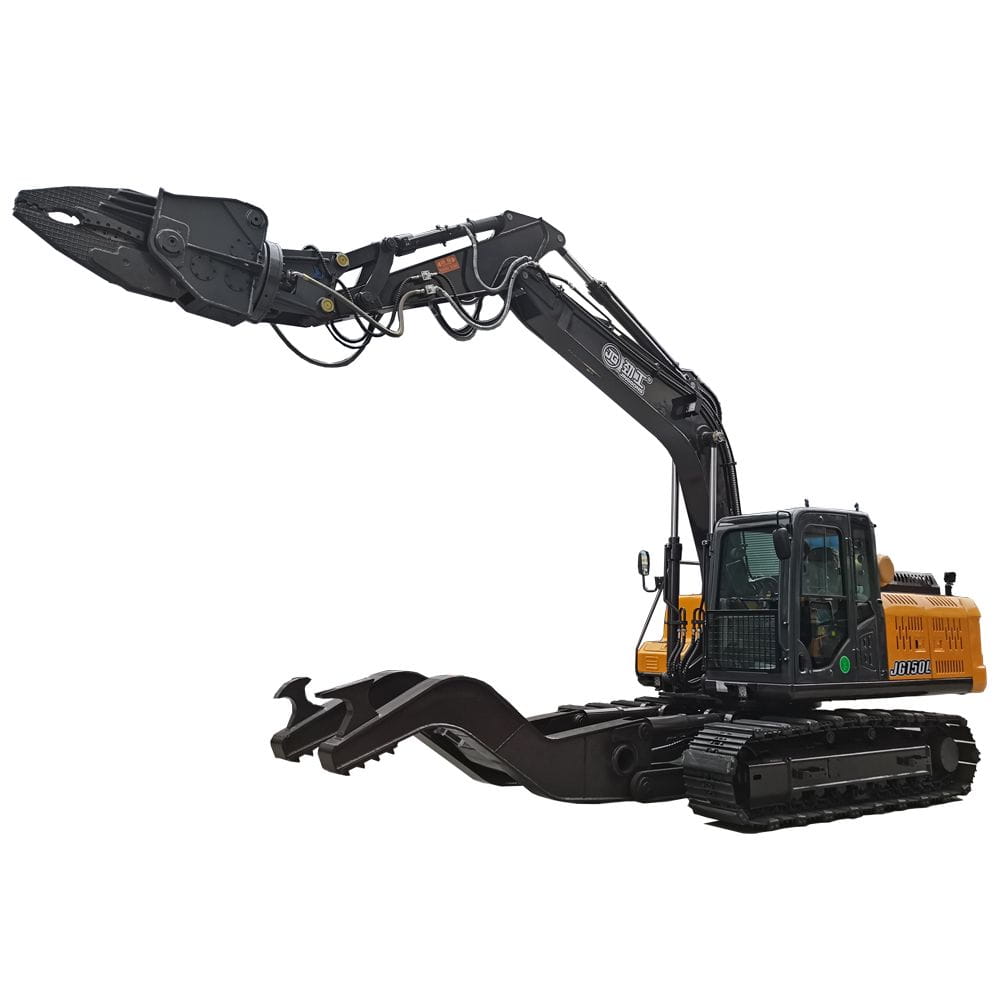

Explore our scrap metal shear excavator, with a machine weight of 16.5 tons and a rated power of 103 kW, delivers impressive performance. It offers a max cutting force of 350 KN, a walking speed of 5 km/h, and features a 360° rotation capability for efficient scrap metal handling.
Request a quote

Detail Information


Range of operation
 Boom length 4500mm
  Arm length 2200mm
 Angle of rotation of the shear 360°
  Max.opening distance of the shear 650mm
 Length of hydraulic shear blade 2-2*185mm
  Max. cutting force (in middle of blade) 350KN
 Max. lifting height of car pressing hand 2000mm
 Max. distance of car pressing hand working 5000mm
Dimensions
(Length*width*height)Transport dimensions 8000*2500*3550mm
Axle base 2850mm
  Track gauge 1960mm
Width of crawler 500mm
Ground clearance of counterweight 940mm
 Min. ground clearance 420mm
Tech performance and specification
Angle of rotation 360°
 Machine weight 16500kg
 Engine model YUCHAI(EuroⅢ)
 Rated power 103kw
Rated speed 2200r/min
 Hydraulic system working pressure 28Mpa
 Hydranlic system flow 270L/min
 Variable piston pump 2*63ml/r
 Max. traction force 76.5KN
 Walking speed(high speed/low speed) 5/2.9km/h
 Grade climbing ability 70%/35°
 Full circle swinging time 5.5s
 Swing overload pressure 25Mpa
 Fuel quantity ≥8L/h
 Fuel tank capacity 200L
 Hydraulic oil tank capacity 200L

Excavator with Scrap Metal Shear
