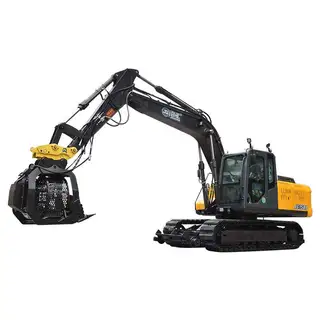

Hi-Rail Crwaler Excavators with Rotary Screening Bucket

Key Specifications / Features

Model No.: WE-230817-HE-01 Hits: 3

Introduce our versatile Hi-Rail Crawler Excavators, a dynamic solution for rail-related operations. With a robust weight of 8.5 tons and an engine power ranging from 45 to 55 kW, these excavators deliver reliable performance. Equipped with a Rotary Screening Bucket Capacity of ≥ 0.25 m³, they ensure efficient material handling. With a Max digging force of ≥ 45 KN, these excavators are engineered to tackle challenging tasks with precision and power.
Request a quote

Detail Information



Screening bucket attachment:
Max Bucket Capacity: ≥ 0.25 m³
Swing Speed: ≥ 30 r/min
Max Digging Force: ≥ 45 KN

Dimensions:
(Length * width * height) Transport Dimensions: 6100 * 2200 * 2650 mm
Axle Base: 2600 mm
Track Gauge: 1570 mm
Width of Crawler: 400 mm
Ground Clearance of Counterweight: 780 mm
Min Ground Clearance: 280 mm

Tech Performance and Specification
Applicable Railway Gauge: 1435 mm (customizable)
Angle of Rotation: 360 °
Machine Weight: 8500 kg, 8.5 Tons
Engine Model: YUCHA (NationalStageⅢ)
Rated Power: 48 - 55 KW
Rated Speed: 2200 - 2300 r/min
