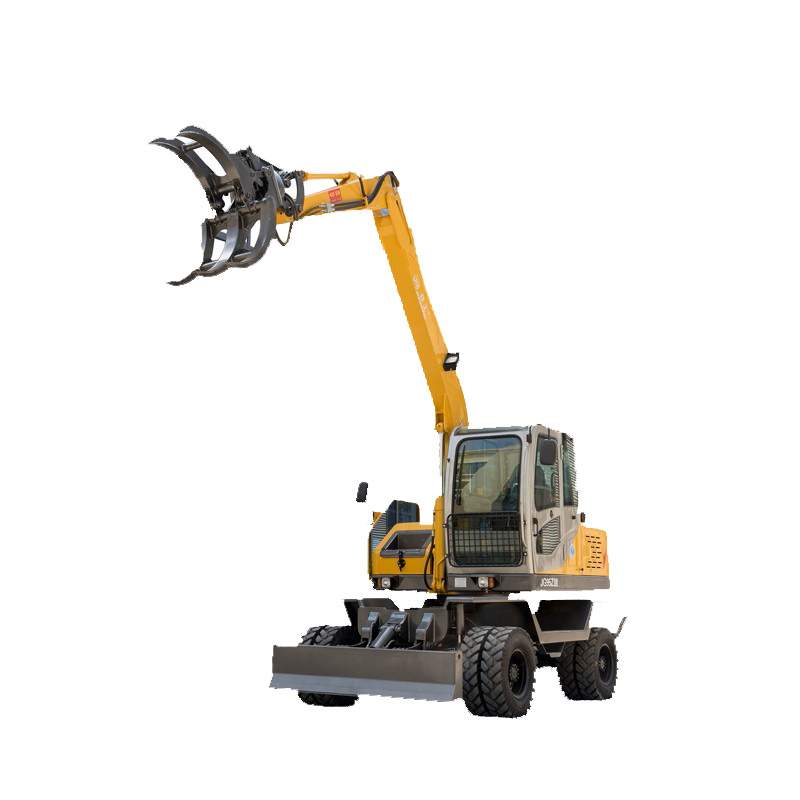

Wheeled Log Grapple Excavator, 6.5 Tons, Rated Power 50 KW
Key Specifications / Features
Introducing our wheeled log grapple excavator, weighing 6.5 tons and equipped with a robust 50 kW engine. With a maximum opening width of 1250-1500 mm and a brisk walking speed of 36 km/h, it's the ideal choice for efficient log handling.
- Model No.: WE-230927-GE-15
- Hits: 10
- Categories: Grab Excavators
- Tags: Wheeled Digging Machine , Grabbing Excavator , 6 Ton Excavator
Detail Information
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom Length | 3475~3670mm | ||||||||
| Arm Length | 1860mm | |||||||||
| Max Radius Of Capture | 6000mm | |||||||||
| Grab The Biggest Opening Width | 1250~1500mm | |||||||||
| Grab The Minimum Opening Width | 200~300mm | |||||||||
| Maximum Radius Weight Capacity | 0.5~0.6t | |||||||||
| Grapple Rotation Angle | 360° | |||||||||
| Max Dumping Height | 4700mm | |||||||||
| Back-End Radius Of Gyration | 1775mm | |||||||||
| DIMENSION | (Length*Width*Height) Travel Position | 6000*2100*2850mm | ||||||||
| Wheel Base | 2600mm | |||||||||
| Track(Front/Rear) | 1660mm/1580mm | |||||||||
| Ground Clearance Of Counterweight | 1060mm | |||||||||
| Min Ground Clearance | 200mm | |||||||||
| TECHNICAL PARAMETERS | Angle Of Rotation | 360° | ||||||||
| Machine Weight | 6500kg | |||||||||
| Engine Model | YN38GB2/4100 | |||||||||
| Rated Power | 50kw | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic System Working Pressure | 19.5Mpa | |||||||||
| Hydraulic system flow | 110L/min | |||||||||
| Metering gear pump | 2*25ml/r | |||||||||
| Grapple Swing Speed | 15~30r/min | |||||||||
| Walking Speed | 36km/h | |||||||||
| Grade Climbing Ability | 58%/30° | |||||||||
| Tyre model | 825.16 | |||||||||
| Revolution overdrive pressure | 16Mpa | |||||||||
| Full Circle Swinging Time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 130L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
