Key Specifications / Features

Model No.: WE-230927-GE-06 Hits: 2

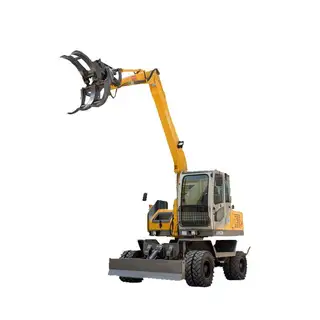

Introducing our Claw Crane Excavator Plant based in China. These excavators have a machine weight of 6.5 tons, a 50 KW power rating, and a maximum grab opening width of 1250~1500 mm. They also boast a swift walking speed of 36 km/h, making them efficient and versatile machines.
Request a quote

Detail Information


SPECIFICATIONS
RANGE OF OPERATION Boom Length 5700~10000mm
Arm Length 3500~5000mm
Max Radius Of Capture 6000mm
Grab The Biggest Opening Width 1250~1500mm
Grab The Minimum Opening Width 200~300mm
Maximum Radius Weight Capacity 0.5~0.6t
Grapple Rotation Angle 360°
Max Dumping Height  4700mm
Back-End Radius Of Gyration 1775mm
DIMENSION (Length*Width*Height) Travel Position 18350*3000*3500mm
Wheel Base 2600mm
Track(Front/Rear) 1660mm/1580mm
Ground Clearance Of Counterweight 1060mm
Min Ground Clearance 200mm
TECHNICAL PARAMETERS Angle Of Rotation 360 °
Machine Weight 6500kg
Engine Model YN38GB2/4100
Rated Power 50kw
Rated Speed 2200r/min
Hydraulic System Working Pressure 19.5Mpa
Hydraulic system flow 110L/min
Metering gear pump 2*25ml/r
Grapple Swing Speed 15~30r/min
Walking Speed 36km/h
Grade Climbing Ability 58%/30°
Tyre model 825.16
Revolution overdrive pressure  16Mpa
Full Circle Swinging Time 5.5s
Fqt Fuel Quantity  ≥4L/h
Capacity Of The Fuel Tank 130L
Hydraulic Tank Capacity  110L

Claw Crane Excavator
