Key Specifications / Features
Leading the industry as a wheeled material handler excavator manufacturer, we offer cutting-edge solutions. Our excavator comes equipped with a state-of-the-art grabber attachment, delivering a remarkable grab capacity of 2.5 - 3 tons, and features a unique 360° rotating stall for unparalleled versatility.
- Model no.: WE-230926-GE-01
- Hits: 0
- Categories: Grab Excavators
- Tags: Grabbing Excavator , Wheeled Digging Machine , 25 Ton Excavator
Detail Information

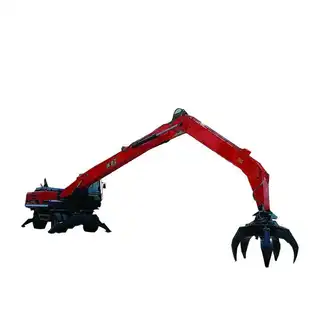

The Material Handler Excavator, equipped with cutting-edge teeth, offers the option of teeth made from cast steel or a welded patch crafted from wear-resistant steel. Elevate your operations with TOPPER Orange Peel Grapples, capable of a 2.5-3-ton grabbing capacity. These grapples excel in tasks such as loading and unloading in wood mills, sugarcane fields, stone factories, and scrap iron plants. Their unique 360° rotating design ensures reliability and durability.
| Range of Operation | |
| Boom length | 9000mm |
| Arm length | 4000mm |
| Maximum Dumping Height | 4500～10500mm |
| Farthest Grabing Distance | 5500～12500mm |
| Max. lifting height of cab | 1800～2500mm |
| Back-end radius of gyration | 3500mm |
| Dimensions | |
| (Length*width*height) Transport Dimensions | 11500*3000*3500mm |
| Axle base | 3300mm |
| Wheel base (front/rear) | 1930mm |
| Ground clearance of counterweight | 1350mm |
| Min ground clearance | 400mm |
| SPECIFICATION OF ORANGE PEEL GRAPPLE | |
| Angle of rotation | 360° |
| Weight of Grab | 760Kg |
| Max. Opening Width of Grab | 1530mm |
| Closing diam | 880mm |
| Tech performance and specification | |
| Angle of rotation | 360° |
| Machine weight | 25000kg |
| Engine model | Cummins(National StageⅡ） |
| Rated Power | 133KW |
| Rated Speed | 2200r/min |
| Volume of bucket | 1.1m3 |
| Hydraulic system working pressure | 32Mpa |
| Hydranlic system flow | 450L/min |
| Walking speed | 25km/h |
| Fqt Fuel Quantity | ≥12L/h |
