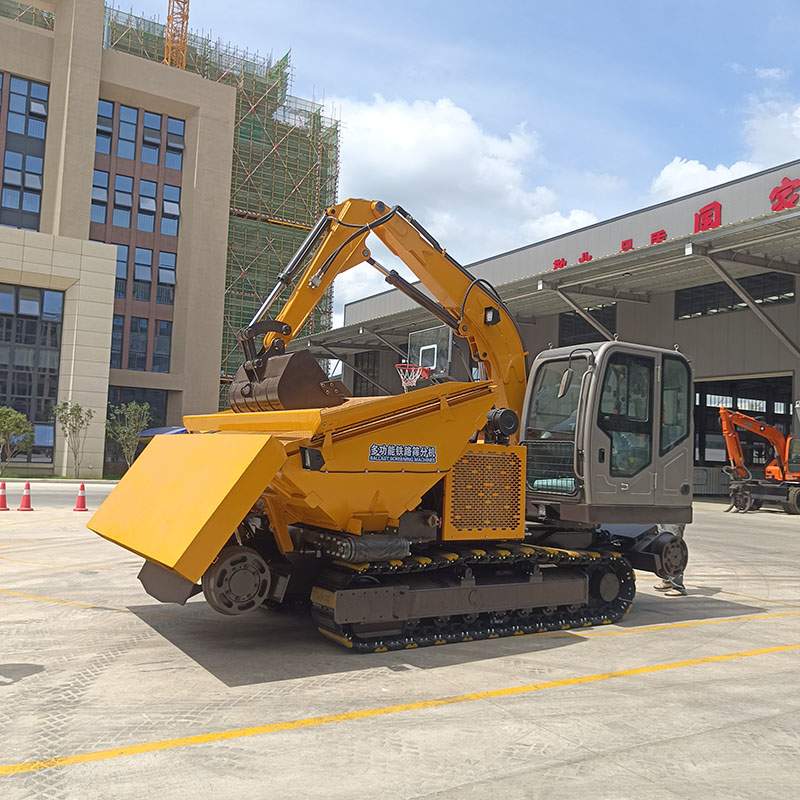

Ballast Screening Machinery for Railway Track Construction
Key Specifications / Features
Our crawler-type railway track ballast screening machinery is dedicated to distributing cleaned ballast for track stability, ensuring the longevity of railway infrastructure. It plays a crucial role in maintaining the reliability of rail networks.
- Model No.: WE-230927-HE-02
- Hits: 24
- Categories: Hi-Rail Excavators
- Tags: Hi-Rail Equipment , Crawler Digger
Detail Information
| Technical parameters of railway screening machine | |
| Excavator operation parameters | |
| Boom length | 3030mm |
| Arm length | 1620mm |
| Max. digging reach | 5200mm |
| Max. digging depth（Below the tracks） | 2200mm |
| Max. digging force | 28KN |
| Maximum digging height (unlimited positions) | 5000mm |
| Maximum working height (limit adjustable) | ＜4350mm |
| Working radius of gyration | 950mm |
